How to open result (MS Windows OS only)#

This tutorial demonstrates how to open and review results using workflow method.

Prerequisites#

Perform imports#

[1]:
import os
from pathlib import Path

from ansys.speos.core import Project, Speos
from ansys.speos.core.simulation import SimulationDirect

Define constants#

Constants help ensure consistency and avoid repetition throughout the example.

[2]:
HOSTNAME = "localhost"
GRPC_PORT = 50098  # Be sure the Speos GRPC Server has been started on this port.
FILE_NAME = "LG_50M_Colorimetric_short.sv5"
RESULT_NAME = "ASSEMBLY1.DS (0).Dom Irradiance Sensor (0).xmp"
USE_DOCKER = True  # Set to False if you're running this example locally as a Notebook.
USE_GPU = False

Model Setup#

Load assets#

The assets used to run this example are available in the PySpeos repository on GitHub.

Note: Make sure you have downloaded simulation assets and set assets_data_path to point to the assets folder.

[3]:
if USE_DOCKER:  # Running on the remote server.
    assets_data_path = Path("/app") / "assets"
else:
    assets_data_path = Path("/path/to/your/download/assets/directory")

Connect to the RPC Server#

This Python client connects to a server where the Speos engine is running as a service. In this example, the server and client are the same machine.

[4]:
speos = Speos(host=HOSTNAME, port=GRPC_PORT)

Create project from a Speos file#

The Project class is instantiated by passing a Speos instance and the name of the Speos project file.

[5]:
p = Project(
    speos=speos,
    path=str(assets_data_path / FILE_NAME / FILE_NAME),
)
print(p)
{
    "name": "LG_50M_Colorimetric_short",
    "description": "From /app/assets/LG_50M_Colorimetric_short.sv5/LG_50M_Colorimetric_short.sv5",
    "part_guid": "dceb343e-01b7-4cf4-974a-499b0359ed72",
    "sources": [
        {
            "name": "Dom Source 2 (0) in SOURCE2",
            "metadata": {
                "UniqueId": "53279ce2-5514-4648-8900-e36baf291b7a"
            },
            "source_guid": "db580893-0cf0-4436-b5c0-b694e817dfc2",
            "description": "",
            "source": {
                "name": "Dom Source 2 (0) in SOURCE2",
                "surface": {
                    "radiant_flux": {
                        "radiant_value": 6.590041607465698
                    },
                    "intensity_guid": "98f15b92-726f-4989-b5bd-1ce711ab619e",
                    "exitance_constant": {
                        "geo_paths": [
                            {
                                "geo_path": "Solid Body in SOURCE2:2920204960/Face in SOURCE2:222",
                                "reverse_normal": false
                            }
                        ]
                    },
                    "spectrum_guid": "2da1afd9-be0d-4977-bcb9-e02e5eda0294",
                    "intensity": {
                        "cos": {
                            "N": 1.0,
                            "total_angle": 180.0
                        },
                        "name": "",
                        "description": "",
                        "metadata": {}
                    },
                    "spectrum": {
                        "library": {
                            "file_uri": "/app/assets/LG_50M_Colorimetric_short.sv5/Red Spectrum.spectrum"
                        },
                        "name": "",
                        "description": "",
                        "metadata": {}
                    }
                },
                "description": "",
                "metadata": {}
            }
        },
        {
            "name": "Surface Source (0) in SOURCE1",
            "metadata": {
                "UniqueId": "9d1d6d1b-846f-48ba-8bbf-eb9598894937"
            },
            "source_guid": "d75337a1-9e16-4d11-9a71-8453c6ac9a90",
            "description": "",
            "source": {
                "name": "Surface Source (0) in SOURCE1",
                "surface": {
                    "radiant_flux": {
                        "radiant_value": 9.290411220389682
                    },
                    "intensity_guid": "1bad6668-eb83-4778-b8da-f59bf522500f",
                    "exitance_constant": {
                        "geo_paths": [
                            {
                                "geo_path": "Solid Body in SOURCE1:2494956811/Face in SOURCE1:187",
                                "reverse_normal": false
                            }
                        ]
                    },
                    "spectrum_guid": "9b6c43b9-035d-4180-adc2-22601fd6ebbc",
                    "intensity": {
                        "cos": {
                            "N": 1.0,
                            "total_angle": 180.0
                        },
                        "name": "",
                        "description": "",
                        "metadata": {}
                    },
                    "spectrum": {
                        "library": {
                            "file_uri": "/app/assets/LG_50M_Colorimetric_short.sv5/Blue Spectrum.spectrum"
                        },
                        "name": "",
                        "description": "",
                        "metadata": {}
                    }
                },
                "description": "",
                "metadata": {}
            }
        }
    ],
    "sensors": [
        {
            "name": "Dom Irradiance Sensor (0)",
            "metadata": {
                "UniqueId": "fe69cb23-ffa9-4db5-8983-bb8077b3d40e"
            },
            "sensor_guid": "6974b195-7ace-4571-bb08-180b15068d28",
            "result_file_name": "ASSEMBLY1.DS (0).Dom Irradiance Sensor (0)",
            "description": "",
            "sensor": {
                "irradiance_sensor_template": {
                    "sensor_type_colorimetric": {
                        "wavelengths_range": {
                            "w_start": 400.0,
                            "w_end": 700.0,
                            "w_sampling": 25
                        }
                    },
                    "illuminance_type_planar": {},
                    "dimensions": {
                        "x_start": -20.0,
                        "x_end": 20.0,
                        "x_sampling": 500,
                        "y_start": -20.0,
                        "y_end": 20.0,
                        "y_sampling": 500
                    },
                    "axis_system": [
                        -42.0,
                        2.0,
                        5.0,
                        0.0,
                        1.0,
                        0.0,
                        0.0,
                        0.0,
                        -1.0,
                        -1.0,
                        0.0,
                        0.0
                    ],
                    "layer_type_source": {},
                    "integration_direction": [
                        1.0,
                        -0.0,
                        -0.0
                    ],
                    "ray_file_type": "RayFileNone"
                },
                "name": "Dom Irradiance Sensor (0)",
                "description": "",
                "metadata": {}
            }
        }
    ],
    "simulations": [
        {
            "name": "ASSEMBLY1.DS (0)",
            "metadata": {
                "UniqueId": "e02cd25b-48d9-4bae-8ea6-1154c6580fcb"
            },
            "simulation_guid": "89179066-2fff-4671-a16d-f5bd4dc92e2d",
            "sensor_paths": [
                "Dom Irradiance Sensor (0)"
            ],
            "source_paths": [
                "Dom Source 2 (0) in SOURCE2",
                "Surface Source (0) in SOURCE1"
            ],
            "description": "",
            "simulation": {
                "direct_mc_simulation_template": {
                    "geom_distance_tolerance": 0.05,
                    "max_impact": 100,
                    "weight": {
                        "minimum_energy_percentage": 0.005
                    },
                    "dispersion": true,
                    "colorimetric_standard": "CIE_1931",
                    "fast_transmission_gathering": false,
                    "ambient_material_uri": ""
                },
                "name": "ASSEMBLY1.DS (0)",
                "metadata": {},
                "description": "",
                "scene_guid": "49f25764-a398-4403-b6e5-b50effa4319e",
                "simulation_path": "ASSEMBLY1.DS (0)",
                "job_type": "CPU"
            }
        }
    ],
    "materials": [
        {
            "name": "Material.1",
            "metadata": {
                "UniqueId": "fd3598be-fbaf-46fc-a399-cfe790ba7082"
            },
            "geometries": {
                "geo_paths": [
                    "Solid Body in GUIDE:1379760262/Face in GUIDE:169"
                ]
            },
            "sop_guid": "3aa00555-3c43-41df-be91-13337f9bf03c",
            "description": "",
            "sop_guids": [],
            "sop": {
                "mirror": {
                    "reflectance": 100.0
                },
                "name": "",
                "description": "",
                "metadata": {}
            }
        },
        {
            "name": "Material.2",
            "metadata": {
                "UniqueId": "861610e0-e4c6-476c-92ad-139519494c1f"
            },
            "vop_guid": "367cea57-c5dc-403e-951e-e9f72079eb62",
            "geometries": {
                "geo_paths": [
                    "Solid Body in GUIDE:1379760262"
                ]
            },
            "sop_guid": "9bb26c48-24b6-4ab3-abf3-b7b988d42f8f",
            "description": "",
            "sop_guids": [],
            "vop": {
                "optic": {
                    "index": 1.4,
                    "constringence": 60.0,
                    "absorption": 0.0
                },
                "name": "",
                "description": "",
                "metadata": {}
            },
            "sop": {
                "optical_polished": {},
                "name": "",
                "description": "",
                "metadata": {}
            }
        },
        {
            "name": "Material.3",
            "metadata": {
                "UniqueId": "0c61cdab-ab36-49c1-8d33-b25d5d2c71de"
            },
            "vop_guid": "7dbde50f-d9d9-4471-88ef-0d0ecf94f083",
            "geometries": {
                "geo_paths": [
                    "Solid Body in SOURCE2:2920204960",
                    "Solid Body in SOURCE1:2494956811"
                ]
            },
            "sop_guid": "3aa00555-3c43-41df-be91-13337f9bf03c",
            "description": "",
            "sop_guids": [],
            "vop": {
                "opaque": {},
                "name": "",
                "description": "",
                "metadata": {}
            },
            "sop": {
                "mirror": {
                    "reflectance": 100.0
                },
                "name": "",
                "description": "",
                "metadata": {}
            }
        },
        {
            "name": "Material.4",
            "metadata": {
                "UniqueId": "7b308394-7744-4ba6-95f6-b9794916a2d6"
            },
            "vop_guid": "80e7dd7f-bbe0-4a06-b4bf-3974d526a616",
            "description": "",
            "sop_guids": [],
            "vop": {
                "optic": {
                    "index": 1.0,
                    "absorption": 0.0
                },
                "name": "",
                "description": "",
                "metadata": {}
            }
        }
    ],
    "metadata": {},
    "scenes": []
}
/home/runner/work/pyspeos/pyspeos/.venv/lib/python3.10/site-packages/ansys/speos/core/project.py:698: UserWarning: The pySpeos feature : FaceStub.read_batch needs a Speos Version of 2025 R2 SP0 or higher.
  f_data_list = face_db.read_batch(refs=f_links)
/home/runner/work/pyspeos/pyspeos/.venv/lib/python3.10/site-packages/ansys/speos/core/project.py:804: UserWarning: The pySpeos feature : SourceSurface needs a Speos Version of 2025 R2 SP0 or higher.
  src_feat = SourceSurface(
/home/runner/work/pyspeos/pyspeos/.venv/lib/python3.10/site-packages/ansys/speos/core/project.py:861: UserWarning: The pySpeos feature : SimulationDirect needs a Speos Version of 2025 R2 SP0 or higher.
  sim_feat = SimulationDirect(

Retrieve the simulation feature#

Use the method Project.find() to retrieve an instance of the SimulationDirect feature.

[6]:
sim = p.find(name=".*", name_regex=True, feature_type=SimulationDirect)[0]

Run simulation#

The simulation can be run using either the CPU or with GPU acceleration. The following cell shows how Python is used to assign the appropriate method to run_sim.

[7]:
run_sim = sim.compute_GPU if USE_GPU else sim.compute_CPU
results = run_sim()  # run the simulation
print(results)
[upload_response {
  info {
    uri: "e84b13bd-fefe-472b-b99d-e97a8db96b0f"
    file_name: "ASSEMBLY1.DS (0).Dom Irradiance Sensor (0).xmp"
    file_size: 2153437
  }
  upload_duration {
    nanos: 3087942
  }
}
, upload_response {
  info {
    uri: "3dce49cf-1a66-42ec-bb26-e6f5536d6187"
    file_name: "ASSEMBLY1.DS (0).html"
    file_size: 647029
  }
  upload_duration {
    nanos: 906776
  }
}
]

Postprocessing#

Open the results (MS Windows OS only):#

Display one result as image.

A full path can be given, or the name of the result.

[8]:
if os.name == "nt":  # Are we running on Windows OS?
    from ansys.speos.core.workflow.open_result import open_result_image

    open_result_image(simulation_feature=sim, result_name=RESULT_NAME)

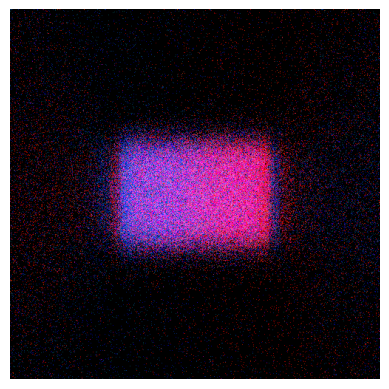

Display the image#

Display one result in a result viewer.

A full path can be given, or the name of the result.

[9]:
if os.name == "nt":
    from ansys.speos.core.workflow.open_result import open_result_in_viewer

    open_result_in_viewer(
        simulation_feature=sim,
        result_name=RESULT_NAME,
    )
speos.close()
[9]:
True
